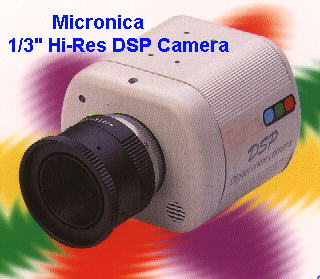

CCD DSP Colour Camera (PAL)
Now only $280 +gst
INCLUDING Programming Control Unit

Camera

Specifications

  • CCD Image Sensor. 1/3 inch image format
  • Auto Back-light Processor
  • 16 Window for Picture Compensation and Central Area Improvement
  • Digital Signal Processor for Video Enhancement and Function
  • 795H x 596V picture elements (PAL)
  • Sensitivity: Imager .018 fc (.18 lux), Scenes .18 fc (1.8 lux)
  • Scanning System: 2:1 Interlace
  • Scanning Frequency: PAL Hor:15625 Hz, Ver:50 Hz. NTSC Hor:15734 Hz, Ver:59.94 Hz
  • Horizontal Resolution: 480 TVL
  • Vertical Resolution: 450 TVL
  • Signal to Noise: Over 47 dB (AGC off, ESC off)
  • AGC Control: Auto -6 -- +18 dB/Off
  • A/D Convert: 9 Bit
  • D/A Convert: 8 Bit
  • Picture Enhance: Hor. 2H, Ver. 2H
  • Backup memory: EEPROM (non-volatile)
  • Auto White Balance: 5100 K (3000..8000)
  • Video Output: 1.0 V P-P, 75 Ohm
  • Gamma Correction: .45
  • CCD Iris: Auto 1/60 .. 1/100,000 /OFF 1/60(50)
  • Geometric Distortion: None
  • Lens Mount: "C" or "CS" with adapter ring included
  • Camera Mount: 1/4" 20, top or bottom
  • Detect Area: 16 area block for back-light compensation + improvement central area
  • Controls:
    * Auto CCD Iris On/Off
    * Auto white balance control
    * Auto black level control
    * Flange Focus
  • Dimensions:
    * 62 x 52 x 110 mm - 350g AC Mode
    * 62 x 52 x 110 mm - 280g DC Mode
  • Power Comsumption: 2.4W, DC 12V, 180mA
  • Temperature:
    * Operating: -10 to +50 DegC
    * Storage: -30 to +70 DegC
  • Humidity: 0 to 95% relative, non-condensing
