Worldwide Distributor for

NC-360
Composite Video Colour Camera
For Desktop and Laptop Computers

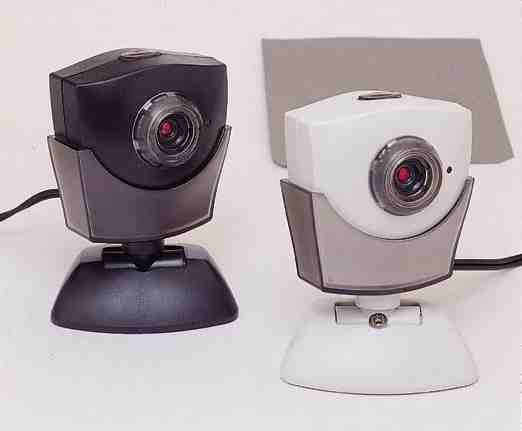

CameraNC-360 Desktop Color Video Camera
When you need a cose effective quality CMOS video camera for your videoconferencing system, look no further than Micronica's NC-360. The NC-360 comes in a neat, compact package which plugs right into your video capture card or AV equipment. Designed to sit atop your computer monitor, the NC-360 gives you quality color video at an affordable price. The camera can be taken out of it's cradle stand to allow you to move it around as required. The power switch on top of the camera allows the camera to be shut off or actived instantly to ensure immediate privacy.


NC-360 FEATURES:
  • 365K Pixels (PAL) or 250K Pixels (NTSC)
  • Standard Composite Video Output
  • Adjustable Video Image Focus
  • Privacy and Power Switch
  • Wide Focus Range Adjustment
  • Detachable pan/tilt mounting base
  • Compact Lightweight package
  • Low power consumption.
  • 5 VDC less than 200 mA.
  • Can be used on Laptop and Desktop PC without AC Adapter
  • Use 5 VDC power from AC Adapter, Keyboard Adapter Cable, Capture card or Game Port connector.
  • Good video quality in most lighting conditions.
  • Macro Function for Close-up Image Capturing
  • Simple and Inconspicuous Design
NC-360 FEATURES IN DETAIL
5 Volt DC Low Power Requirement
Power is easily obtainable from your computer Keyboard or Mouse port or suitable Video Grabber card. Thereby obviating the need for and additional AC Plugpack power supply. AC Plugpack power supply also available if required for your particular needs.
Convenient Swivel Base Cradle
The actual camera is snugly fitted in a swivel base cradle with wide range of pan and tilt adjustment. Ideal for desktop video conferencing applications. Or take it out of its base to provide a compact hand held camera that can be moved around at will.
Wide Range Focus Adjustment
Focus can be adjusted over a wide range to optimise picture quality.
Simple and Inconspicuous Design
NC-360 is less noticeable compared to other desktop cameras so you can relax and conduct more natural conferencing.
Privacy Shutter
With NC-360's built-in Privacy switch and indicator you can immediately see and be sure that you have complete privacy. It also acts as a power ON/OFF switch.

Specifications
TV System PAL or NTSC System
Image Sensor 365K Pixel (PAL or 250K Pixel (NTSC)l CMOS Image Sensor
Effective Picture Element 510(H) x 492(V)
Sync. System Internal Sync.
Flicker-less Function Correspond to 50/60Hz Fluorescent Light
White Balance Automatic
Picture Quality Control Adjustable Focus
Switches Privacy and Power Switch on top
Connectors Power Input: Power connector (5.5mm/2.1mm)
Video Output: RCA
Camera Swivel Base Detachable Tilting and Panning Cradle Base
Power Source DC 5V 10% / Less than 200 mA
Ambient Operation Temp. -5XC ~ +40XC / RH 85% Max. (Keep free from dampness)
Ambient Storage Temp. -10XC ~ +50XC / RH 90% Max. (Keep free from dampness)
