Australian and Worldwide Distributor for
RS-232 PCI Serial Port Card
With DOS Re-Map function

CLICK HERE
For Current Price

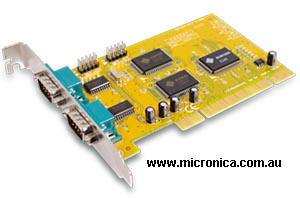

The Micronica universal PCI Multi-port serial card provides RS-232 Serial connection ports on your system for modem and industrial communication and automation applications. This serial card works on both 32-bit and 64-bit PCI Bus with 3.3V or 5V power allowing it to be installed in virtually any PC system and compatible with all major operating systems. The card supports multi independent RS-232 ports, with each port transfer data up to 921.6 Kbps, making it the best solution for various industrial communication and automation applications.
This card features a special re-map function built in for use with devices designed to work only in specific addresses like the COM1 or COM2 port. Ideal for legacy DOS, software and other applications requiring this level of control. The Re-Map function allows user to manually adjust the I/O address to the following specific address 3F8, 3E8, 2F8, and 2E8. The card is also available without the special Re-Map functionality if preferred.

Features:
* This is THE perfect PCI card for running Legacy DOS Applications with PCI !
* Overcomes the need for ISA Slots to run traditional ISA Com Port Cards
* The perfect high speed modem serial port card
* Compliance with PCI ver. 2.2 spec. standard
* Supports both 64-bit & 32-bit PCI bus slot
* 32 byte on-board FIFO, 128K byte assigned FIFO
* Plug-n-Play, IRQ and I/O address BIOS assigned
* DOS Driver included for DOS applications. Easy to set up under DOS
* Re-Map to ISA Address 3F8, 3E8, 2F8, 2E8
* Data Signals: Tx,Rx,RTS,CTS,DTR,DSR,DCD,RI,GND
* Supports Microsoft Windows 9x/ME/NT,2K/XP,CE,Vista,Linux,DOS
* 3.3V / 5V bus power
* Baud Rate RS-232: Up to 921.6 Kbps
* PCB Connector DB9M connector
* Number of Port 2 x RS-232
* Dimensions (WxD) 120 x 78 mm
* Bracket Standard 121 mm
* ISA Bus and PCI Bus Versions both available.

  • Plug-n-Play, IRQ and I/O address BIOS assigned
  • Re-Map to ISA Address 3F8, 3E8, 2F8, 2E8
  • BAUD RATE SUPPORT UP TO 921.6 Kbps
  • Data Signals: Tx,Rx,RTS,CTS,DTR,DSR,DCD,RI,GND
  • Suits ISDN and Standard Modems
  • Available with one or two serial ports
  • Available with or without re-map function
