12" MIC-12OF-VS 12" LCD Monitor
Panel Mount, Desktop or Open Frame Monitor
VGA, HDMI, DVI, Composite Video (BNC or RCA) Monitor
Choice of Buttons on Back or Front
>> CLICK HERE FOR CURRENT PRICE <<

Product Overview:
The Micronica 12" MIC-12OF-VS Open Frame Enclosed Monitor is an ideal display for Panel Mounting in Machinery, POS Systems and Wall Mounting.
The rugget Metal Case makes it suitable for both industrial grade and consumer applications it provides a 12 inch LCD display in a metal case with removable Side Mounting Flanges or with a versatile optional adjustable stand. Or provide your own choice of Vesa mount.
It features standard 15 pin VGA connection plus HDMI and Composite Video Inputs. With DVI as Option.
Choose from the standard or Super High Brightness 1000nits. And touch screen model is available for a small additional cost. Just ask.
The professional metal case means the Micronica 12" MIC-12OF-VS Monitor is also ideal for shops and store fronts!.

Features:
o Several input types for long term application flexibility
o Choice of buttons on front or back for a neat appearnace and avoid tampering
o High Brightness. Super high brightness option
o Streamlined Appearance Design
o Panel, Desktop or Wall Mountable options
o Fine Definition LCD Panel
o Universal 12 Volt External Power Supply included
o VESA Mounting Holes
o Touch Screen option

Specifications:
- 12" LCD Display Panel
- 4:3 Aspect Ratio or 16:9 Wide Screen MIC-12OFW-VS Optional
- Video Inputs: VGA + HDMI + 2 x Composite Video Input (BNC or RCA) 1 x Composite Video Loopthrough Output (BNC or RCA) standard. DVI Input optional
- Dimensions (4:3 Model): Outside: 290mmW x 230mmH x 50mm, Viewable Area: 245mmW x 185mmH
- Dimensions (16:9 Model): Ask!
- Brightness: High Brightness 450nits standard. 1000nits optional
- High Brightness and Super High Brightness Option: 1000-1600nits IPS Panel: Add $62+gst
- Resolution:800x600,1024x768,1280x1024 and higher.
- 12 Volt DC connection. Mains power supply adapter INCLUDED
- Panel Mountable, Open Frame Mountable, Vesa Mounting Holes, Desktop Stand, Point of Sale Applications
- Options: Panel Mount Side Brackets $Free INCLUDED, Rear Wall Mount $5+,Foldable Table Stand $20+
- Touch Screen Funtion Optional: With USB Mouse Port Touch Function
- Touch Options: Resistive 4 Wire $25+,Resistive 5 Wire $35,SAW $68+ (VGA+HDMI+SAW Touch)
- Memory Function: Monitor Remembers last input selection and can be configured to Power ON state even if power fails and resumes.


Brochure Summary:
>> Brochure <<

Several Models to Choose from: (CLICK on pictures)

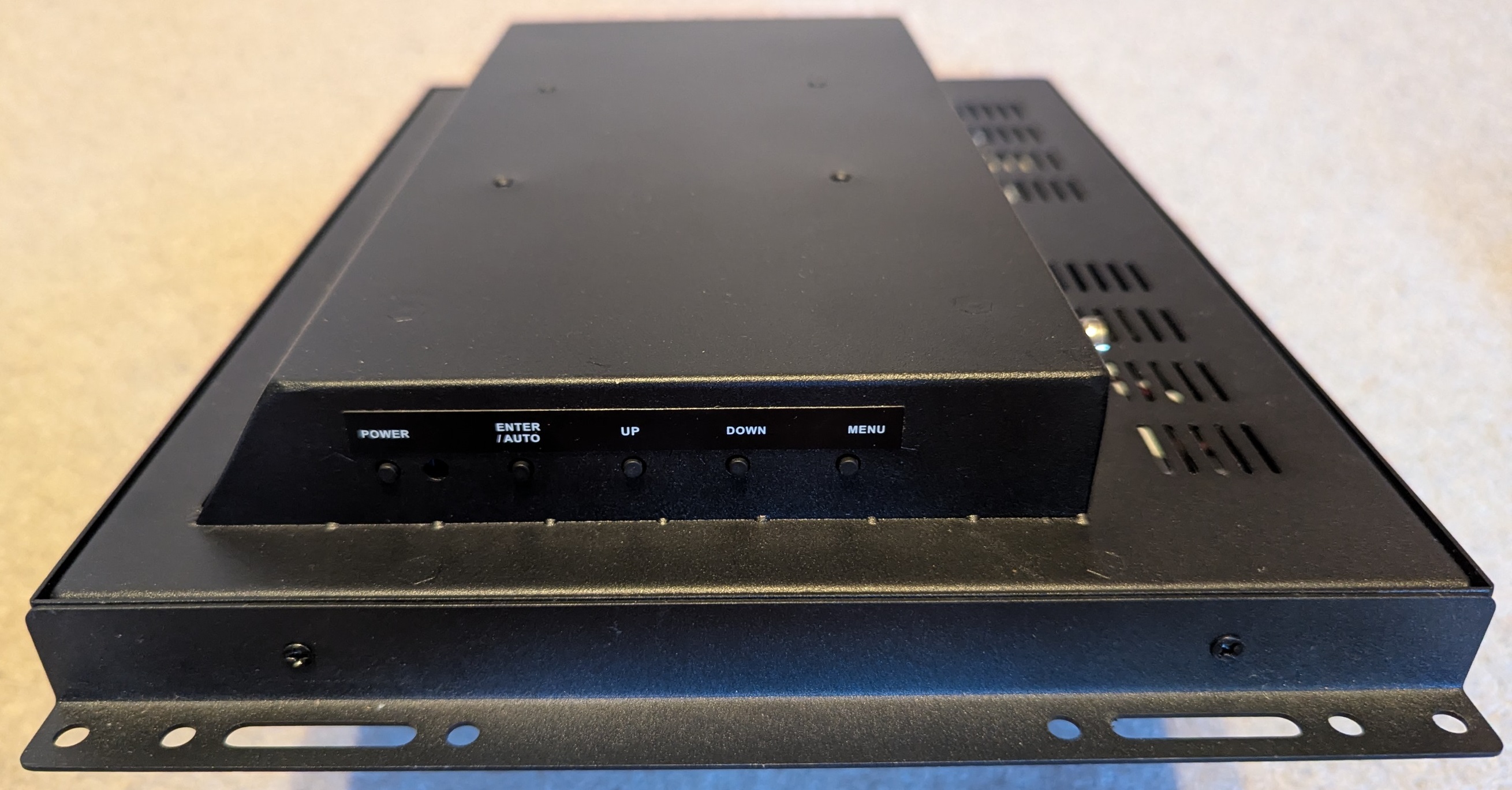

- 4:3 With Buttons on Back

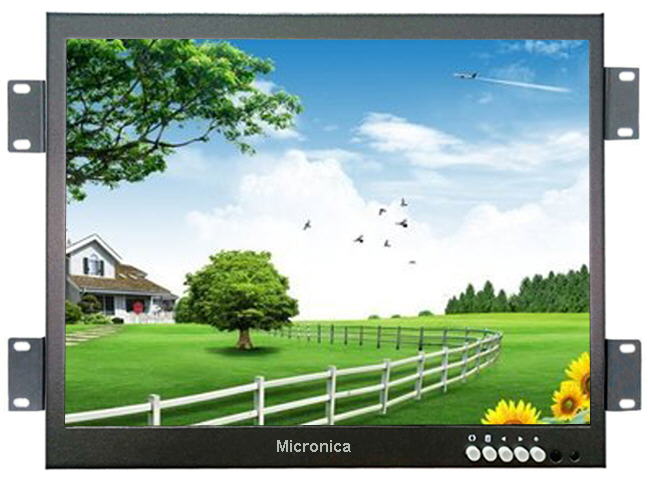

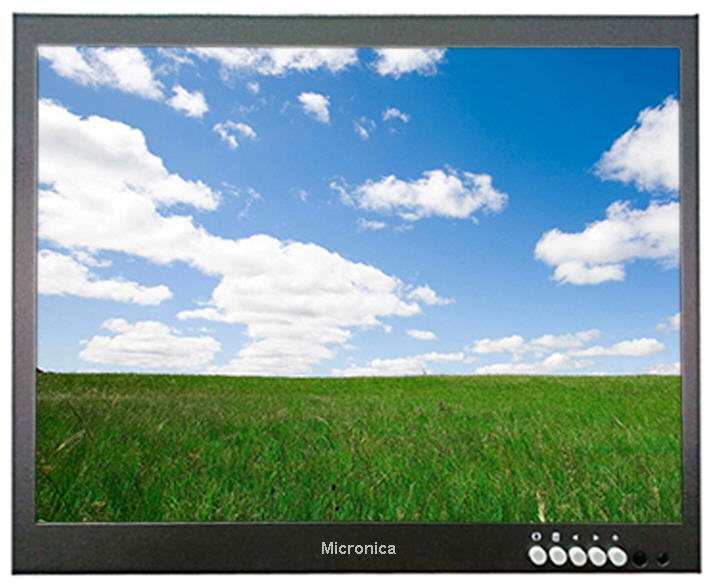

- 4:3 With Buttons on Front

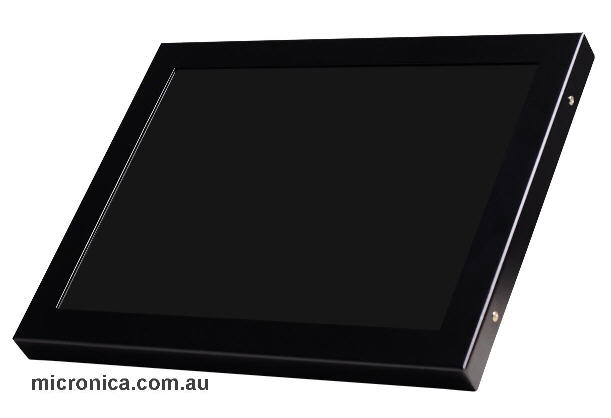

- 16:9 Widescreen With Buttons on Front


Choice of Inputs and Connectors:

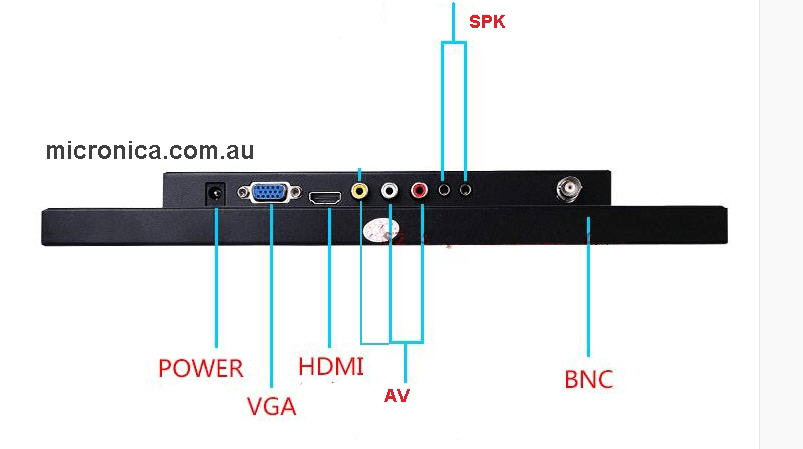

-VGA, HDMI, Composite Video RCA (Standard)

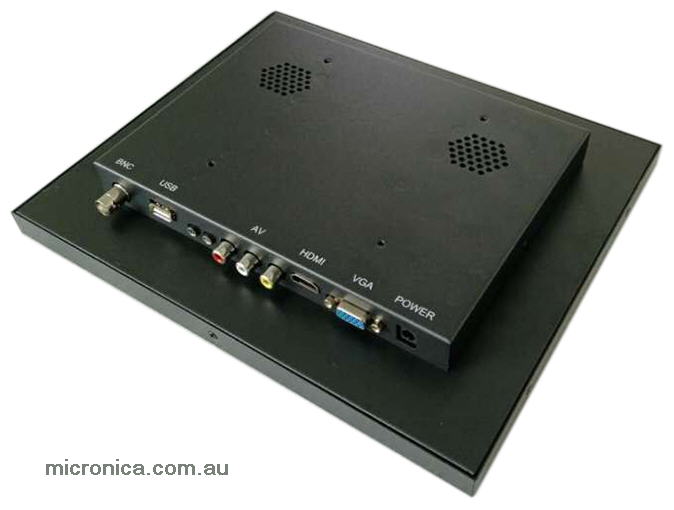

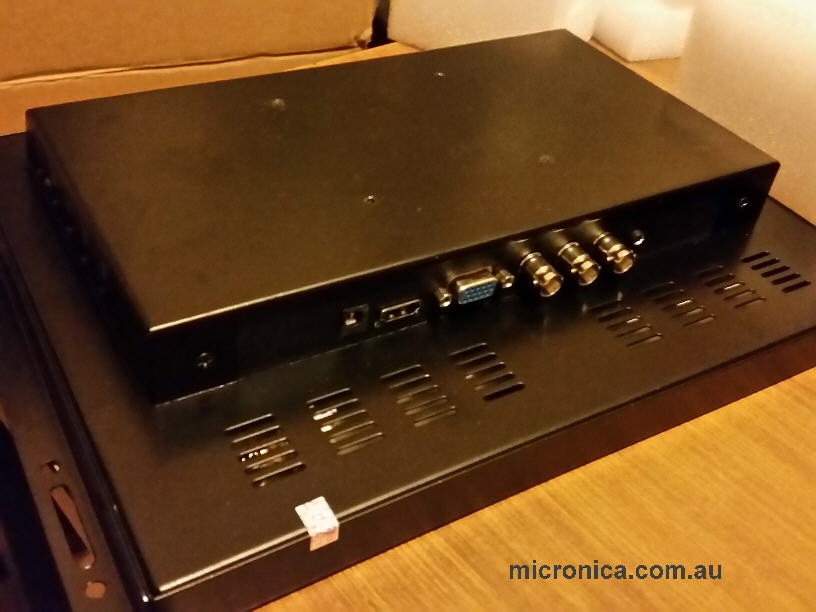

-VGA, HDMI, Composite Video BNC (Option)

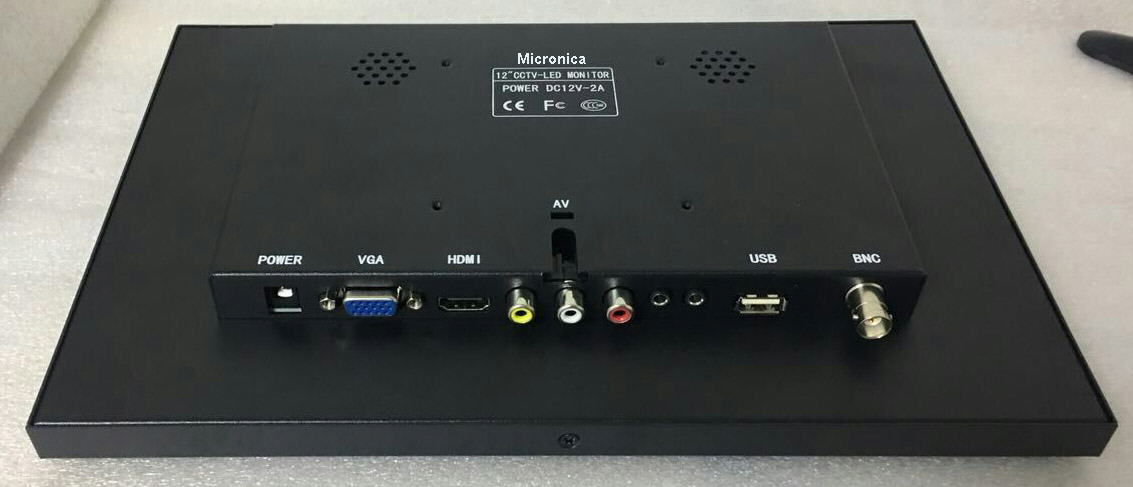

-VGA, HDMI, Composite Video (16:9 Widescreen Option)

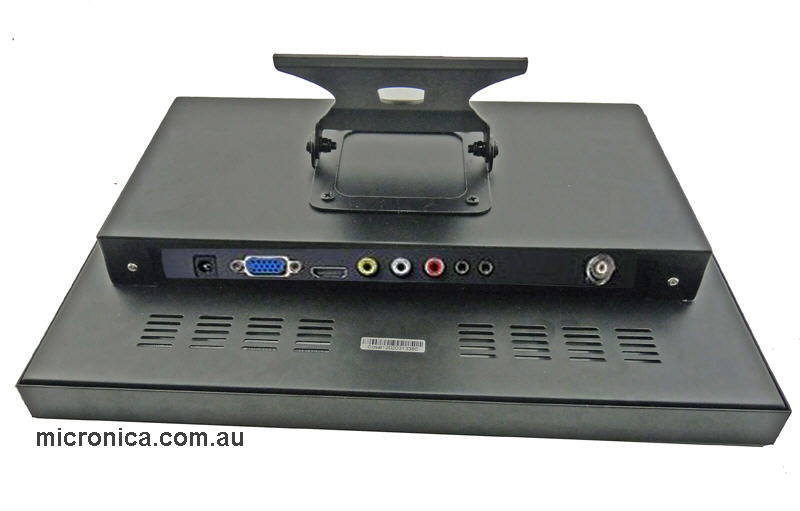

Foldable Stand (Option):
