Worldwide Distributor for

SOHOmate SiP-42 Internet Sharer/Router/Firewall

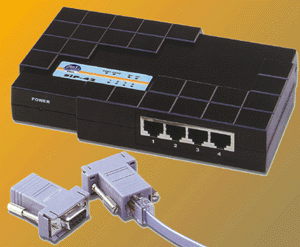

Product: SiP-42

SiP-42 is a No-LAN-Card multi-functional IP sharing device. It provides excellent all-in-one networking solution to surf the Internet and share the office resources. Its efficiency boosting features will increase effectiveness and save cost in any working environment. It includes the following functions:

  • IP Sharer: It connects multiple users to Internet by sharing one PSTN/ISDN line, one modem and one ISP account.
  • Print Server: It provides network printing function so that the LAN users can share the printer.
  • FAX Server: It provides network faxing function so that the users can fax documents out through the network.
  • Virtual Email Server: It provides mail server function so that the users can receive Email safely by sharing up to four ISP mailboxes.

Specification
Port Characteristics
WAN port RS232 (male DB9) x 2
WAN speed 115.2Kbps x 2
LAN port RS232(RJ-45) x 4
LAN speed 230.4Mbps x 4
Printer port 1 (female DB25)
IP Sharer
Dial-on-demand YES
Auto-disconnect YES
PAP/CHAP YES
PPP/ML-PPP YES
Max users 4
Support ISDN TA YES
Print Server
Platform support Win95/98/NT, Unix LPR
Management Web-based
FAX Server
Platform support Win95/98/NT
FAX Modem support Class 1
Virtual E-mail Server
Protocol support POP3
No of mailboxes shared 4
No of users 64
Configuration and Management
Web-based configuring YES
Web-based management YES
Win AP monitoring YES
Features
DHCP server YES
Upgrade method FTP or Windows AP
Firewall protection Built-in NAT firewall
Hardware
CPU Embedded X86
Flash ROM 256K bytes
Power AC 9V 1000mA
Physical dimensions
Size 168 x 108 x 30 mm3 (6.61 x 4.25 x 1.18 in3)
Weight 1.17 kg (2.58 lb.)
Environmental
Operating temperature 5 oC ~ 55 oC
Humidity 10% ~ 90%

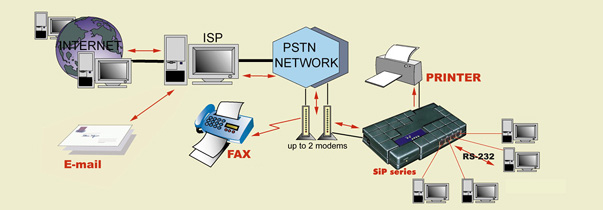

Typical SiP-42 Connection Diagram:

Features
  • Entire network Internet access by sharing one telephone line and one ISP account.
  • Peripheral sharing to print and fax documents through the network.
  • Virtual E-mail server sharing up to eight ISP mailboxes.
  • Simple enough to setup and operate.
  • Easy to configure
  • Complete SOHO solution for internet surfing and office resource sharing


  • Benefits
  • Specially designed for non-technology user
  • Easy to configure and operate
  • Web-based configuration and usage condition
  • Complete SOHO solution for Internet surfing and office resource sharing
  • Provide virtual private mailbox for everyone using. Only one ISP mailbox
  • Provide 1 or 2 WAN ports with load sharing capability
  • Supports Internet access for 2 to 4 computers simultaneously. No LAN card is required.(SiP Series only)
