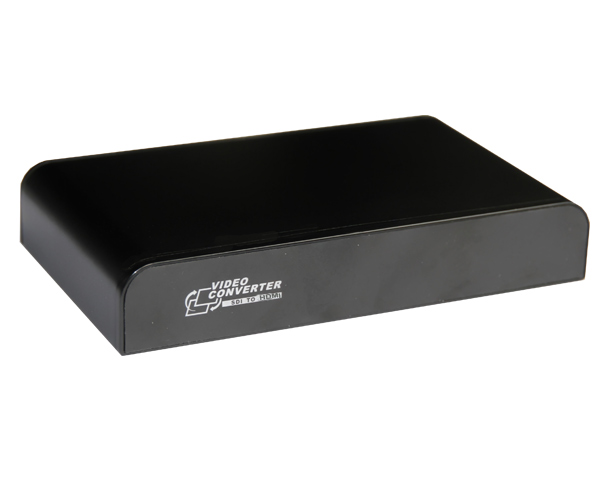

SH-368
SDI to HDMI Converter
With Scaler Function
AU$540 Export, AU$594 inc GST
Delivery: $14+gst Melbourne Metro, $20+gst Australia Wide, AU$50 World Wide

The Micronica SH-368 SDI to HDMI Converter with scaler function converts SD-SDI ,3G-SDI or HD-SDI to HDMI for driving HDMI monitors.SDI to HDMI converter that supports a wide range of display resolutions through 3G, HD, and SD-SDI.For professionals that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter

Features
Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
Plug and play.

Specifications
1. SDI input
  1) Format: Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
  2) Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
  3) Impedance: 75Ω
  4) Supports signal transmission distances of up to 300M for SDI signals, 200M for HD signals and 100M for 3G signals
  5) Resolution: 525i,625i;HD720P@24Hz,720P@25Hz,720P@30Hz,720P@50Hz,720P@60Hz,1080i@50Hz,1080i@60Hz,1080P@24Hz,1080P@25Hz,1080P@30Hz,1080P@50Hz,1080P@60Hz.
Recommended resolutions: 720P@50Hz;720P@60Hz
2.HDMI output
720P@50Hz,720P@60Hz,1080i@50Hz,1080i@60Hz,1080P@24Hz,1080P@25Hz,1080P@30Hz,1080P@50Hz,1080P@60Hz
3. Power: DC 5V /1A. 400mA max
5. Dimension: 105*59*23mm
6. Working temperature: 0 C ~50 C
7. Weight: 72g

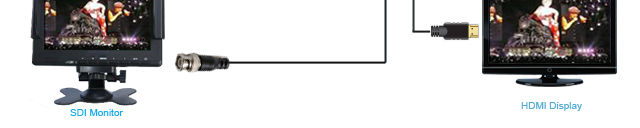

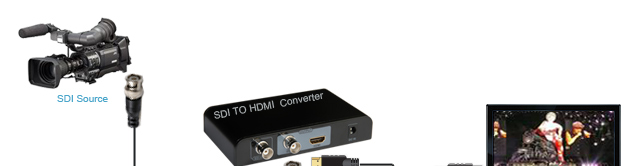

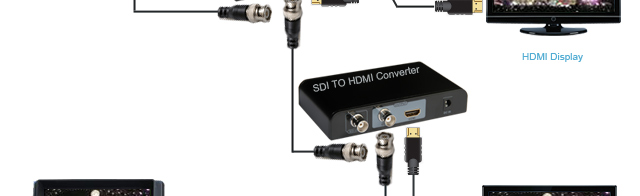

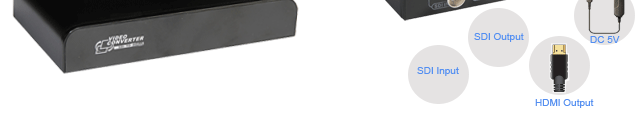

Connection Image

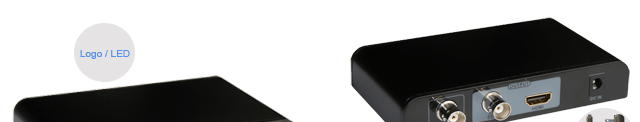

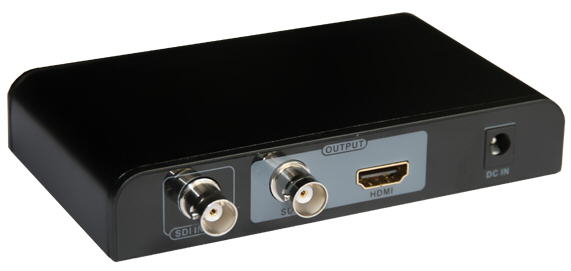

Interface Specification
