High Quality Micronica Outdoor Enclosure (ENC-OUT)

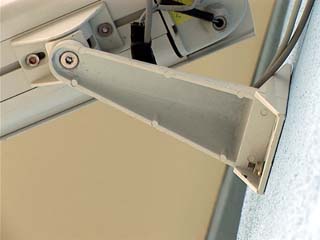

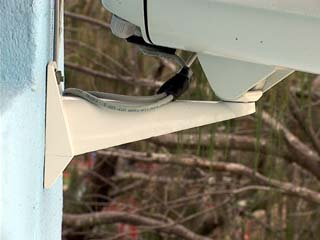

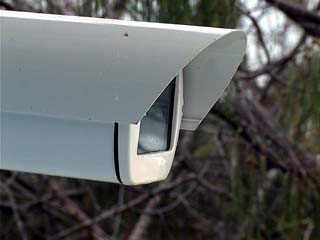

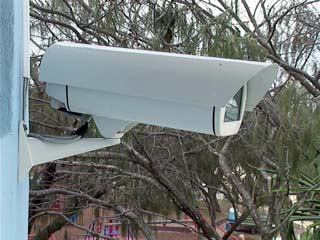

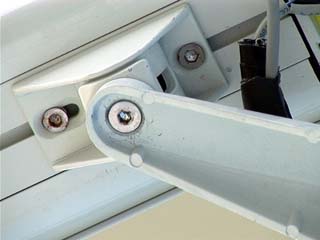

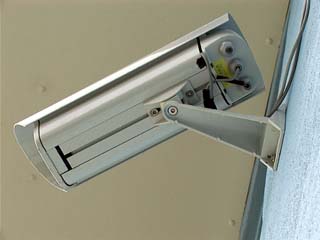

	The Micronica High Quality outdoor enclosure (ENC-OUT) has IP66 weather rating for extreme environmental conditions. A further level of high temperature environmental protection is provided by the seperate Sun Shield included in each kit and optional cooling fans. Designed to keep the camera protected from the elements, it features a high quality Aluminium construction with Baked Enamel Powder Coated Finish. It includes a steel mounting bracket that can be used to secure the camera housing on a vertical or horizontal surface. The camera/enclosure angle is easily adjusted. Heater Demister element and cooling fan available.* Designed with both installer and end user in mind, the easy to open slide-off lid keeps the camera mounted on the bracket and enclosure platform, ensuring that once positioned, replacing the lid will not alter the alignment. Camera mounting is simple and flexible with an internal camera tray. Attractive streamligned design blends into most critical building environments without compromising enclosure functionality.
Enclosure Outside Dimensions: 465mm Long x 145mm Wide x 140mm High Cable Entry: 3 Entry Points. Seals Rated to IP66 Total Weight (w/o camera): approx 2 kg

Heavy Duty Outdoor Enclosure (ENC-OUTD)
	The heavy duty outdoor enclosure (ENC-OUTD) is a rugged environmental housing designed to keep the camera protected from the elements. It includes a heavy duty steel mounting bracket that can be used to secure the camera housing on a vertical or horizontal surface. The camera/enclosure angle is easily adjusted. Heating element and cooling fan available.*
Enclosure Dimensions: 15.5" (39.4 cm) Long x 6.25" (15.9 cm) Wide x 6.25" (15.9 cm) High Inside Dimensions: 11.25" Long x 4.25" Wide x 6" High (no camera sled) or 4.5" High (with camera sled) Longer version of this enclosure with 14" internal length also available. Bracket Dimensions: 12" (30.5 cm) Long with a 5.5" (14 cm) Diameter base Total Weight (w/o camera): 7.5 lbs.

Outdoor Enclosure (ENC-OUTD2)
	The outdoor enclosure (ENC-OUTD2) is an environmental housing designed to keep the camera protected from the elements. It includes a mounting bracket that can be used to secure the camera housing on a vertical or horizontal surface. Note: Exact design and specification may change from time to time to that shown.
Enclosure Dimensions: 17" (39.4 cm) Long x 5.5" (13.96 cm) Wide x 4.5" (11.4 cm) High Bracket Dimensions: 12" (30.5 cm) Long with a 4" (10.16 cm) by 3.4" (8.64 cm) base Total Weight (w/o camera): 5.5 lbs.
