VP200

Plug & Play Multimedia
Video Server


Features & Benefits
  • High Performance Cost-Effective Design
  • Client Application Control via Standard Web Browser
  • Built-In Web Server for Internet Browsing
  • Plug-n-Play Installation
  • Remote Pan/Tilt/Zoom Camera Controls
  • Video Close-Ups Via Zoom Feature
  • Separate or Simultaneous Viewing of All Six Cameras
  • Up to 16 User Passwords Providing Log-In Security
  • Real-Time Video Transmission
  • Time Stamp Setting on Camera
  • Camera Location Identifiers
  • Online Hardware Self-Diagnostic Feature
  • Easy System Configuration (Web Address/RS-232)
  • Video Optimization via Hue, Contrast, Saturation, and Brightness Controls
  • OYO Viewer Software Enabling Point-to-Point Modem
Specification
Video Input/Output NTSC/PAL Support
Six Video Outputs
Six Video Inputs with NTSC/PAL Auto Detection
Compression H.263, M-JPEG, and JPEG Video Formats
Resolution 320x240 Image Size
24-Bit True Color
Performance Up to 10 Frames Per Second
Bandwidth 100K Byte/Second (JPEG)
10K Byte/Second (H.263)
Hardware 32-Bits CPU, 16MB DRAM
2MB Flash-ROM for Firmware
One 10Base-T Ethernet Port
Two RS-232 Serial Ports
Four Sets of GPI/O
Front Panel Power Indication/Status LED's
Built-in Mini Web Server
Browser Compatibility Microsoft IE 4.0/Netscape Communicator 4.0 or Later
Protocols  TCP/IP, PPP, HTTP Support
Connectors One 10Base-T Ethernet Port
Six RCA Connectors for Video Input
One DB-9 Port for Six Video Outputs
One 16-Pin Terminal Block for Digital I/O
Power Supply 25 watts power consumption, 90-264VAC, 47-63HZ
Size/Weight 304mm (L) x 165mm (W) x 55mm (H) / 1.73kgs
11.97" (L) x 6.50" (W) x 2.17" (H) / 3.8lbs

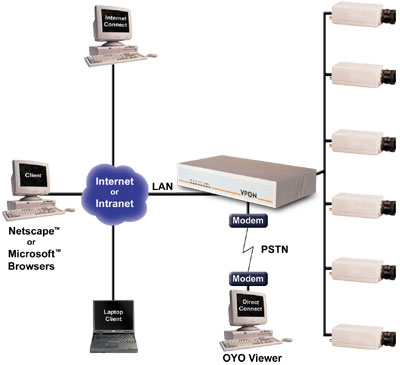

Schematics
