VP
500
Audio & Video Server &
Recorder |
|
|

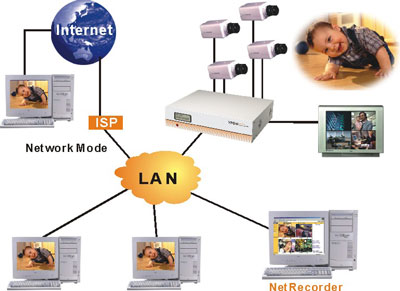

Schematic
|
|
|
 |
| Features
& Benefits |
- Built-in Web Server, video grabber, compressed & stored on Built-in
Hard Disk.
- Inputs for up to 4 Cameras plus Audio recording and broadcasting
- Built-in Streaming Web Server transmits to remote PCs via Internet or Intranet
to anywhere in the World!
- Records, Displays and Streams video simultaneously
- Full motion live video with Audio over internet, intranet or direct
dial up modem connection over common telephone lines
- Continuous Recording saving video data for at least 168 hours
- Saving video data by cycle recording avoid disk space shortage issue
- Supporting motion detection, event trigger recording, schedule recording
- Supporting Pre-Alarm function
- Query recording data by date, time, triggered events via IR remote controller
or home page
- Build-in channel switching (QUAD) function for local CCTV monitoring
- Cameras can be fixed or remotely controlled PTZ to swivel or zoom in and
out using a standard Web Browser.
- You can view and even replay recorded video on local TV Composite Video monitor or Remote PC over networks
- Supporting smart recording, up to 200:1 compression ratio
- Easy system configuration via IR remote control, HTTP Home Page or RS-232
- Uses a standard Web Browser to view and control the system
- Built-in general purpose I/O for alarm and control
- Unit can be triggered to initiate certain events through specialised
call back feature using a telephone modem connection
- Supporting HTML file upload to FLASH ROM for home page customisation
- Supporting FTP Server download for customization
- Industrial 19" 2U Rack Mount or desktop
|
| Specification |
| Video Input |
Support NTSC/PAL composite
video
4 BNC video input connectors
Built-in 75 ohm terminator switch |
TV and Monitor
Outputs
for Local monitoring |
-Composite Video NTSC/PAL video output
-VGA Monitor Output |
| Remote Control
Input/Output |
4 control in/out points
Photo-couple dry contact digital input
24V/200mA relay output |
| Audio Input/Output |
4 Audio input/output
Ear-phone output
Line-In input |
| Compression Algorithm |
Support H.263 |
| Image Quality |
24 bits 320x240 , True Colors |
| Maximum Frame
Rate |
30fps |
| Data
Rate |
100 KByte/second (JPEG)
10 KByte/second (H.263) |
| Hardware |
32bits CPU, 128MB DRAM
8MB Flash-ROM for firmware
One RS-232 serial port
One RS-232/422/485 serial port
One 100BaseTX Ethernet ports
Front panel 16 characters LCD display
One VGA output
One IrDA Wireless Controller
Built-in mini web server
Built-in 40GB Hard Disk or above |
| Browser Compatibility |
Win 95/98 running Netscape
Navigator 4.0 or MS Internet Explorer 4.0 or above |
| Communication
Protocol |
Support TCP/IP, PPP, HTTP |
| Power Supply |
100-240 VAC, 50-60HZ |
| Size/Weight |
381mm (L) x 302mm (W) x 88mm (D)
Weight 4.5kg
19" 2U Rack Mount Brackets Included |
